Vortex Razor® HD LHT™ 3-15x50 G4i BDC (MRAD) Reticle | 30mm Tube

Vortex Razor® HD LHT™ 3-15x50 G4i BDC (MRAD) Reticle | 30mm Tube - Image 2

Vortex Razor® HD LHT™ 3-15x50 G4i BDC (MRAD) Reticle | 30mm Tube - Image 3

Vortex Razor® HD LHT™ 3-15x50 G4i BDC (MRAD) Reticle | 30mm Tube - Image 4

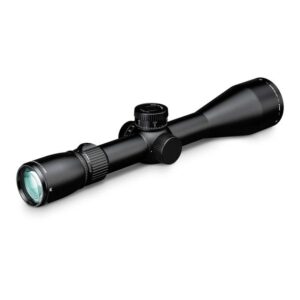

Vortex Razor® HD LHT™ 3-15×50 G4i BDC (MRAD) Reticle | 30mm Tube

Name: Vortex Razor® HD LHT™ 3-15x50 G4i BDC (MRAD) Reticle | 30mm Tube
Brand: Vortex
SKU: RZR-31503
Price: 32000.00 ZAR
Availability: InStock

R32000,00

About this product

From the mountains to open country, the Razor^® HD LHT™ is the precision riflescope you need to make distant shots feel easy. Stunning HD clarity and enhanced contrast reveal every detail, from counting kickers on a buck in dark timber or locking onto a tuft of shoulder hair over the vitals of an elk. Lightweight yet rugged, with push-button illumination and a rock-solid zero system, this top-of-the-line optic gives you the edge in the moments that matter most.

Recommended uses – Western Hunting

1 in stock

SKU: RZR-31503 Category: Riflescopes Tags: New Vortex Riflescope, Vortex MRAD, Vortex MRAD Reticle, Vortex Razor, VORTEX RIFLESCOPE

Product Manual

Brand: Vortex

Description
Reviews (0)

#image_1629102762 {
width: 100%;
}

#image_179444804 {
width: 100%;
}

#image_709619882 {
width: 100%;
}

#section_816392866 {
padding-top: 30px;
padding-bottom: 30px;
background-color: rgb(40, 40, 40);
}

#gap-958352154 {
padding-top: 30px;
}

Specifications

Magnification – 3-15x
Objective Lens Diameter – 50 mm
Focal Plane – Second Focal Plane
Reticle – G4i BDC (MRAD)
Eye Relief – 3.8″
Field of View – 35.3′ – 7.0′ @ 100 yds
Turret Style – Exposed Elevation Capped Windage
Tube Size – 30mm
Adjustment Graduation – .1 MRAD
Travel Per Rotation – 6 MRAD
Max Elevation Adjustment – 23 MRAD
Max Windage Adjustment – 23 MRAD
Parallax Setting – 20 m – ∞
Length – 13.6″
Weight – 20.5 oz

Razor HD LHT 3-15×50 Dimensions (in inches)

Lengths
L1	L2	L3	L4	L5	L6
13.6	2.1	2.0	5.6	4.3	3.4

Heights
H1	H2
2.3	1.7

Reticle

#image_1978974989 {
width: 100%;
}

G4i BDC (MRAD)

G4i-BDC reticle can be used effectively with a variety of firearms, including high powered rifles, rimfire rifles, blackpowder rifles, and slug shotguns. This reticle also provides reference marks to compensate for bullet drop and bullet drift in windy conditions.

Click Here for the Suspension View

Click Here for the Reticle Manual

Click Here for the Parts Diagram

Feature Tech

Class Leading HD Optical System – Stunning resolution and class-leading field of view combine to create our most advanced optical system.

RevStop^® Zero System – Patented streamlined design offers an easy to set, reliable return to zero after turret adjustments.

XR™ Plus Lens Coatings – Ultimate anti-reflective coatings on all air-to-glass surfaces provide maximum light transmission for peak clarity and the pinnacle of low-light performance.

Locking Elevation Turret – Integrated locking mechanism prevents accidental adjustments. Elevation turret provides fast, accurate, easily read elevation adjustments.

Lightweight Design – 20.5 oz.

APO (Apochromatic) System – Index-matched lenses correct color across the entire visual spectrum.

Argon Gas Purged – Gas purged and O-ring sealed for superior fogproof and waterproof performance in the most extreme conditions.

Optically Indexed Lenses – Optimize image sharpness and brightness from edge to edge.

Aircraft Grade Aluminum – Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.

ArmorTek^® – Ultra-hard exterior lens coatings defend against scratches, oil, and dirt.

Low-Glare Matte Black Anodize – Corrosion and wear resistant anodization provides low-glare matte surface and helps camouflage the shooter’s position.

Waterproof – Designed to withstand harsh weather conditions.

Fogproof – Designed to withstand a wide range of temperatures.

Shockproof – Designed to withstand the highest levels of recoil and impact.
