UNLIMITED LIFETIME WARRANTY
OVERVIEW
When success rides on the perfect shot, rely on the exceptional versatility and optical performance of Viper® HD. From predators to big game, river bottoms to the Rockies, there’s a field-proven configuration for every hunting application. Ultra-rugged. Remarkably adaptable. Each member of the Viper® HD family delivers outstanding image clarity, resolution, and sharpness to ensure your target comes into view with sharp detail. Viper® HD also boasts enhanced features for unmatched accuracy at extended ranges while also excelling in the low light of dawn and dusk when game is most active.

| Lengths | |||||
|---|---|---|---|---|---|
| L1 | L2 | L3 | L4 | L5 | L6 |
| 13.2 | 2.1 | 1.8 | 5.5 | 4.3 | 3.4 |
| Heights | |
|---|---|
| H1 | H2 |
| 2.03 | 1.7 |
SPECIFICATIONS
Magnification 3-15x
Objective Lens Diameter – 44 mm
Focal Plane – Second Focal Plane
Reticle – Illuminated Dead-Hold® BDC (MOA)
Eye Relief – 3.4″
Field of View – 39.9′ – 8.0′ @ 100 yds
Turret Style – Capped
Tube Size – 30mm
Adjustment Graduation – 1/4 MOA
Travel Per Rotation – 25 MOA
Max Elevation Adjustment – 92 MOA
Max Windage Adjustment – 92 MOA
Parallax Setting – 20 yds. – ∞
Length – 13.2″
Weight – 21.5 oz.
FEATURES
HD Optical System – Optimized with select glass elements to deliver exceptional resolution, cut chromatic aberration, and provide outstanding color fidelity, edge-to-edge sharpness, and light transmission.
Fully Multi-Coated Lenses – Anti-reflective coatings on all air-to-glass surfaces provide increased light transmission for greater clarity and low-light performance.
Illuminated Reticle – Provides precise aiming under low-light conditions.
Single-Piece Tube – Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness.
Argon Gas Purged – Gas purged and O-ring sealed for superior fogproof and waterproof performance in the most extreme conditions.
Fast-Focus Eyepiece – Allows for quick and easy reticle focusing.
Aircraft Grade Aluminum – Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
ArmorTek® – Ultra-hard exterior lens coatings defend against scratches, oil, and dirt.
Low Glare Matte Black Anodize – Corrosion and wear resistant anodization provides low-glare matte surface and helps camouflage the shooter’s position.
Waterproof – Designed to withstand harsh weather conditions.
Shockproof – Designed to withstand the highest levels of recoil and impact.
Fogproof – Designed to withstand a wide range of temperatures.

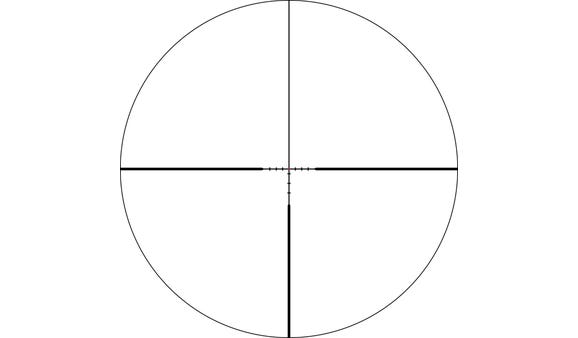

RETICLE

Illuminated Dead-Hold® BDC (MOA)
Customized hashmark design helps eliminate guesswork on holdover and windage corrections. Good for hunting and shooting at varying ranges, where estimating holdover is a concern.
INCLUDED IN THE BOX
- Neoprene Cover
- Sunshade
- Lens Cloth
- CR2032 Battery
